DJI O4 Air Unit Pro

Item Code: O4AIRPRO | Barcode: 6941565997449

HD FPV Video Transmission

Key Features:

• 4K/120fps 1/1.3" CMOS Sensor
• Up to 15 km Video Transmission Range
• 15ms Ultra-low Latency

AUD $349.00

Experience freedom in flight with DJI O4 Air Unit Pro.

Compatible with drone frames sized 3 inches and above, the O4 Air Unit Pro presents the cutting edge in video technology for custom-build FPV.

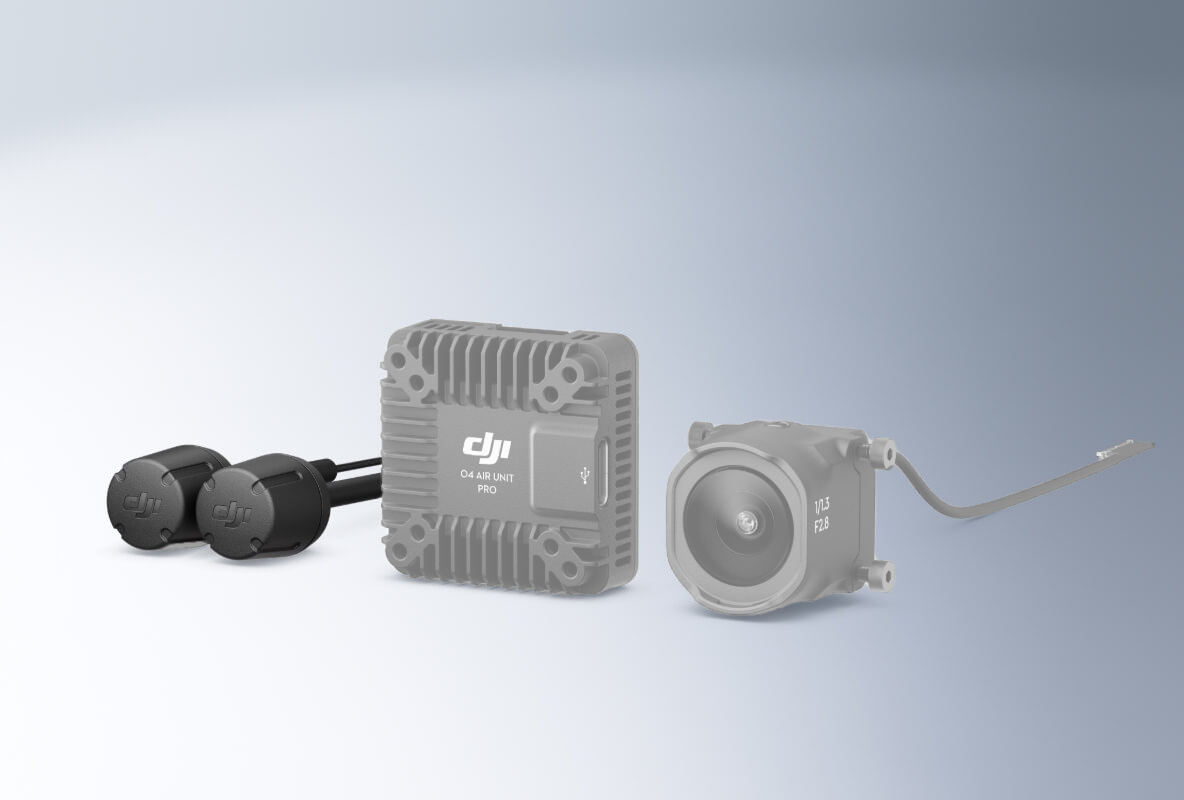

Image of 3 Components with the Dual Antenna Highlighted

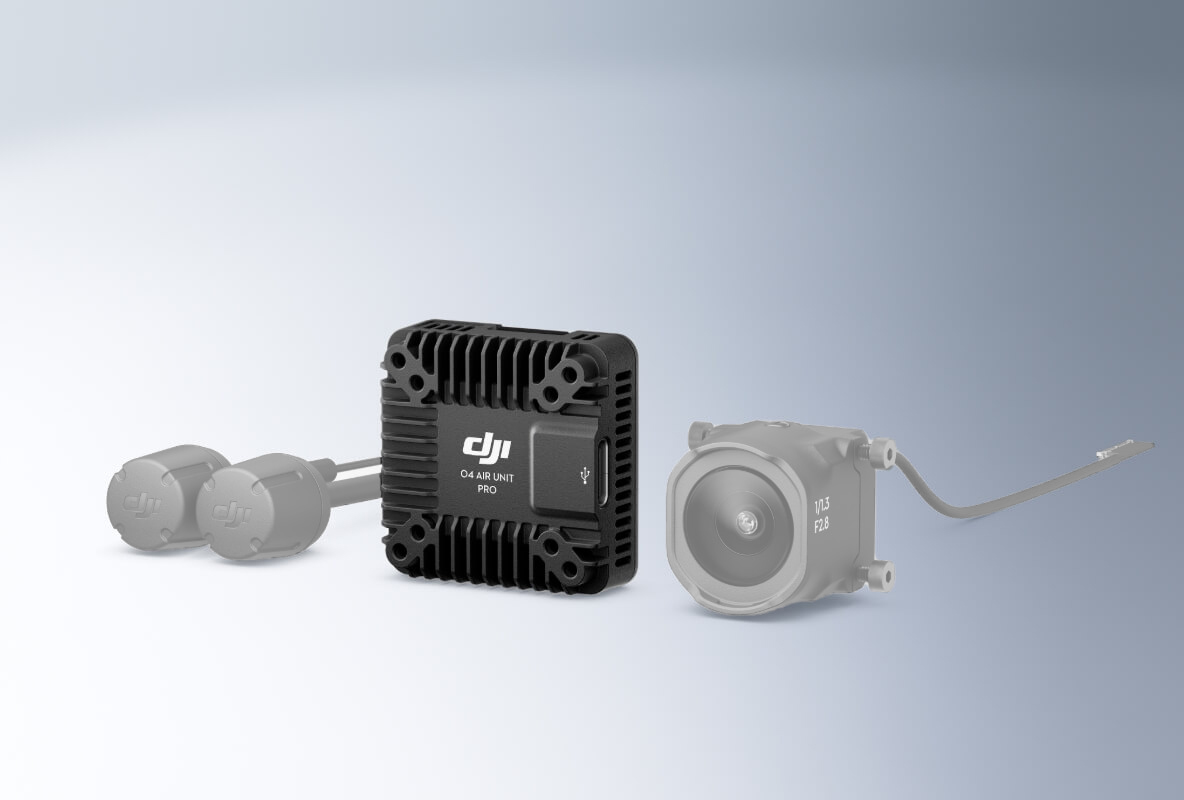

Image of 3 Components with the Transmission Module Highlighted

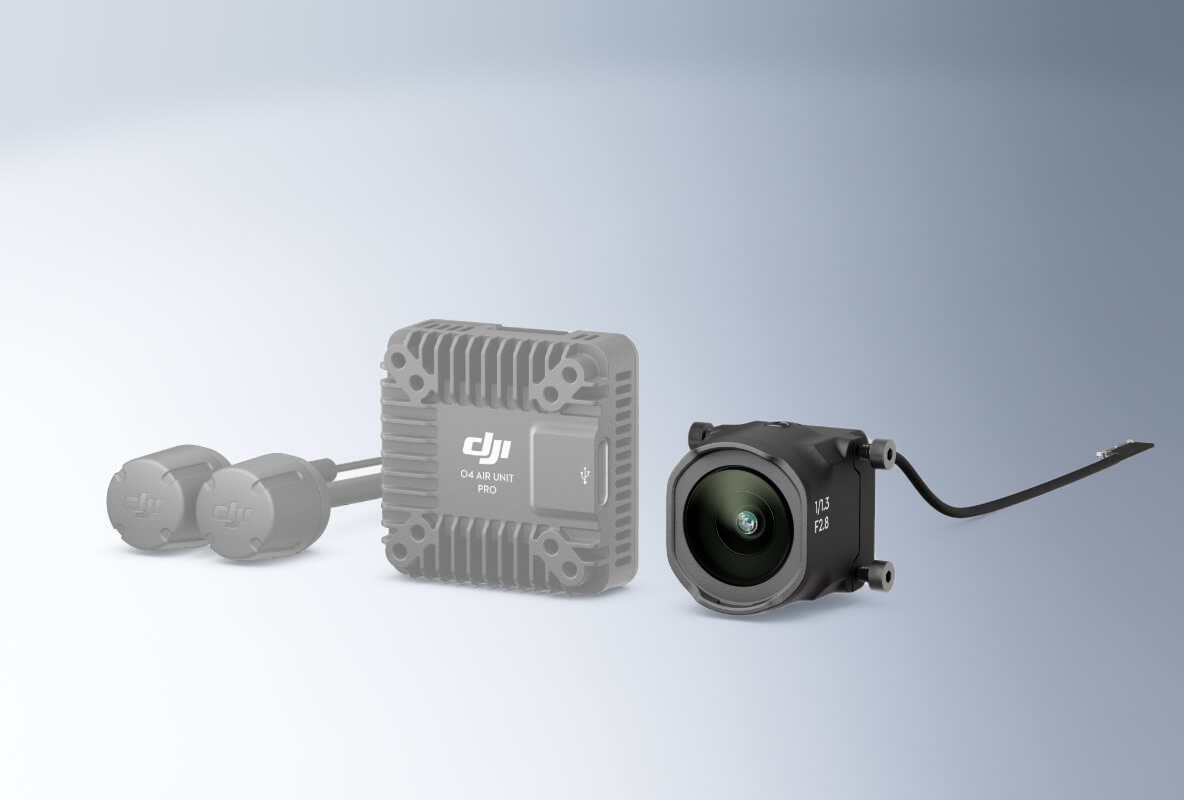

Image of 3 Components with the Camera Module Highlighted

Dual Antenna

Transmission Module

Camera Module

Small but Mighty

With a compact design to support ultra-fast drone frames, the O4 Air Unit Pro delivers flagship imaging and transmission performance without any bloat. Simply install it on a compatible drone frame and transform your build into a pro-level drone.

32g^[8]

Air Unit Weight (camera module included)

25.6 × 20 × 23.3mm^[8]

Camera Module Dimensions

33.5 × 33.5 × 13mm^[8]

Air Unit Dimensions

O4 Air Unit Pro on Custom Made Drone Skeleton

Industry Leading Video Transmission

As its name suggests, the O4 Air Unit Pro is powered by DJI O4 Transmission.

Don’t settle for crummy video transmission! With its dual-antenna design, the unit delivers true-to-life 1080p/100fps H.256 live view quality with a transmission latency as low as just 15 milliseconds, allowing you to make quick, real-time flight decisions with ease.

Enjoy a best-in-class transmission range up to 15 kilometres with a video transmission bitrate up to 60 Mbps. No matter where you fly, you can rely on O4 Air Unit Pro’s incredible transmission for responsive controls.

Ready to Race

Did someone say speed? With its new Racing Mode supported by ultra-low video latency, up to eight aircraft can race simultaneously.

Crisp Cinematics

DJI O4 Air Unit Pro makes capturing share-worthy FPV footage easy. Say goodbye to bulky action cameras and mounts with O4 Air Unit Pro’s integrated camera module.

Capture high-octane, ultra-wide 4K video with sensational 10-bit D Log-M colour thanks to a 1/1.3” CMOS sensor - the largest ever on an Air Unit series product.

1/1.3” CMOS Sensor 4K/120fps Video 155° Ultra-Wide FOV 10-bit D-Log M Colour

Stay Steady

Name: DJI O4 Air Unit Pro
Brand: DJI
Price: 349 AUD
Availability: InStock

Scared of shake? With the help of RockSteady electronic image stabilisation algorithms, your footage will remain smooth and steady, no matter how hectic your flights get. Plus, with support for Gyroflow software stabilisation, you can further stabilise your footage in post.

Better Flights

Control your view with support for Canvas Mode and Betaflight OSD Settings.

Customise real-time data to suit your preferences and aid flight success.

Your Flights, Your Way

Customisation lies at the heart of DJI O4 Air Unit Pro, that’s why it's designed to support a variety of accessories for your preferred flight set-up. Pair it with existing accessories in your FPV flight kit including DJI Goggles and controllers for phenomenal FPV flying.

DJI Goggles 3

*Requires DJI FPV Remote Controller 3

DJI Goggles N3

*Requires DJI FPV Remote Controller 3

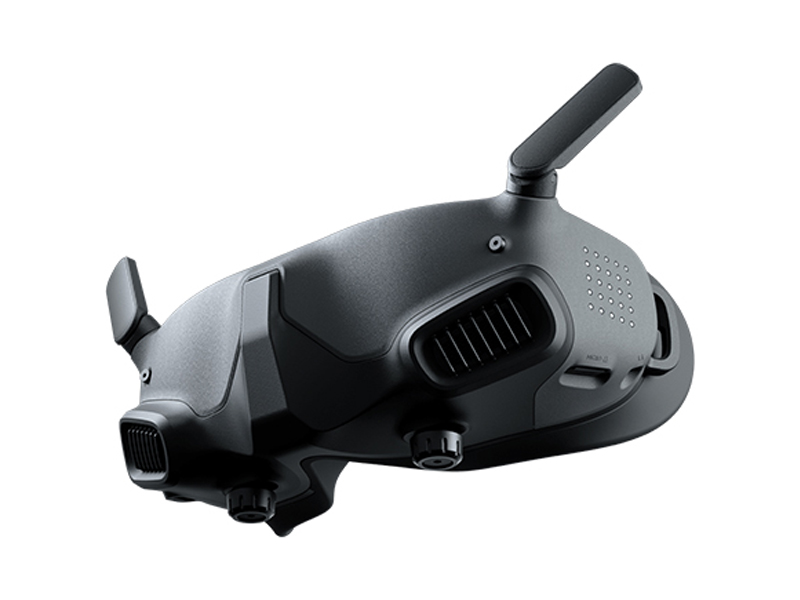

DJI Goggles 2

*Requires DJI FPV Remote Controller 2

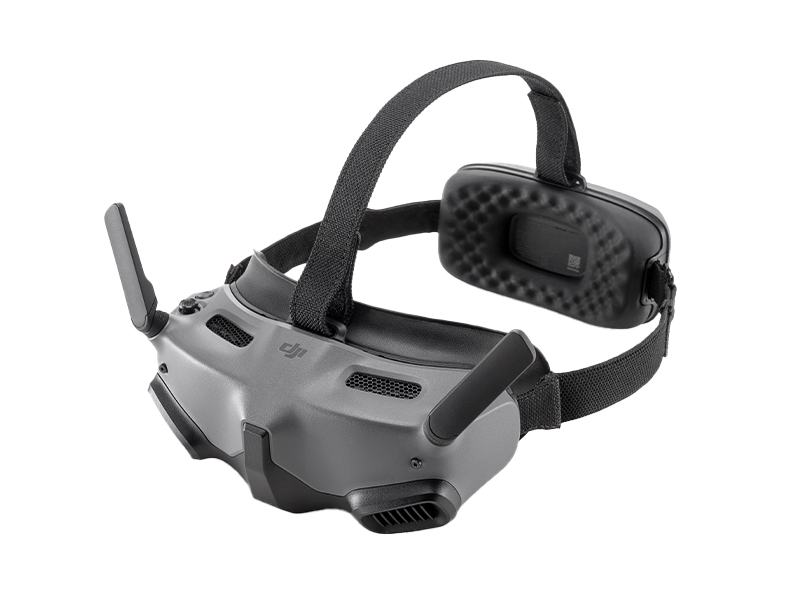

DJI Goggles Integra

*Requires DJI FPV Remote Controller 2

Weight	Air Unit (camera module excluded): Approx. 15.6 g Air Unit (camera module included)：Approx. 32 g Antenna: Approx. 2.1 g/pcs
Dimensions	Transmission Module: 33.5×33.5×13 mm (L×W×H) Camera Module: 25.55×20×23.30 mm (L×W×H) Coaxial Cable: 140 mm 3-in-1 Cable: 100 mm Antenna: 110 mm

Operating Frequency	5.170-5.250 GHz 5.725-5.850 GHz ^{Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.}
Transmitter Power (EIRP)	5.1 GHz: <23 dBm (CE) 5.8 GHz: <33 dBm (FCC) <14 dBm (CE) < 30 dBm (SRRC)
Lowest Latency	With DJI Goggles 3 and pick racing mode: With 1080p/100fps video transmission quality, the latency is as low as 15 ms. With DJI Goggles N3 and pick racing mode: With 1080p/100fps video transmission quality, the latency is as low as 19 ms. With DJI Goggles 2 or Goggles Integra： With 1080p/100fps video transmission quality, the video transmission latency is less than 30 ms. ^{Latency data represents the minimum latency during the screen refresh process of DJI Goggles.Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.}
Max Video Transmission Range	With DJI Goggles 3/DJI Goggles N3: 15 km (FCC),8 km (CE),8 km (SRRC) ^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.}
Live View Quality	1080P@30/48/50/60/100fps
Communication Bandwidth	Max 60 MHz
Antenna	2 antennas, 2T2R
Channels	Supports auto mode Supports manual mode: With DJI Goggles 3 or DJI Goggles N3: 60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel With DJI Goggles 2 or Goggles Integra： 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info	FCC/SRRC/CE: 60MHz/40 MHz： Channel 1: 5794.5 MHz 20 MHz/10 MHz: Channel 1: 5768.5 MHz Channel 2: 5789.5 MHz Channel 3: 5814.5 MHz

Image Sensor	1/1.3-inch CMOS Sensor
Lens	FOV: 155° The equivalent focal length: 12 mm Aperture: f/2.8 Focus: 0.6 m to ∞
ISO Range	100-25600 (Auto) 100-25600 (Manual)
Video Resolution	4K(4:3): 3840 x 2880@30/48/50/60fps 4K(16:9): 3840 x 2160@30/48/50/60/100/120fps 2.7K(4:3): 2888 x 2016@30/48/50/60fps 2.7K(16:9): 2688 x 1512@30/48/50/60/100/120fps 1080P(4:3): 1440 x 1080@30/48/50/60/100/120fps 1080P(16:9): 1920 x 1080@30/48/50/60/100/120fps
Video Format	MP4
Max Video Bitrate:	130 Mbps
Color Mode	Normal Mode D-Log M
Camera FOV	Standard Wide-Angle Ultra Wide-Angle
EIS	RockSteady 3.0+ Stabilization function off (supports Gyroflow) ^{When RockSteady is enabled, the shooting angle only supports standard.}

Input Voltage	7.4-26.4 V
Operating Temperature	-10° to 40° C

Built-in Storage	4GB
Supported SD Cards	microSD (up to 512 GB)

Supported Flight Controller System	Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers	DJI Goggles 3 + DJI FPV Remote Controller 3 DJI Goggles N3 + DJI FPV Remote Controller 3 DJI Goggles 2/ Goggles Integra + DJI FPV Remote Controller 2 ^{The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.}
