Name: DJI BS100 Intelligent Battery Station
Brand: DJI
Price: 2100 AUD
Availability: InStock

BS100 Intelligent Battery Station

Item Code: M400P2 | Barcode: 697224123687

All-in-One Charging Solution

Key Features:

• Supports up to 3 TB100 Batteries
• Flexible Charging Modes

AUD $2,100.00

Overview
Specifications

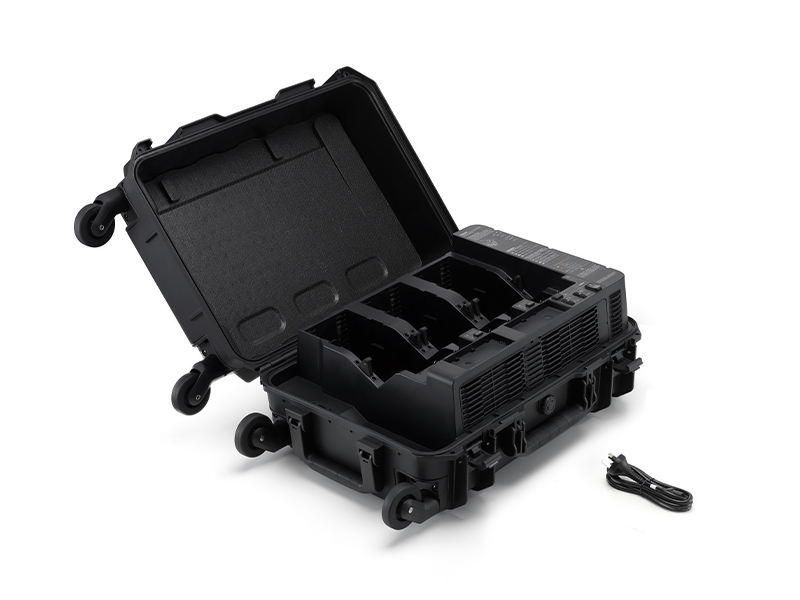

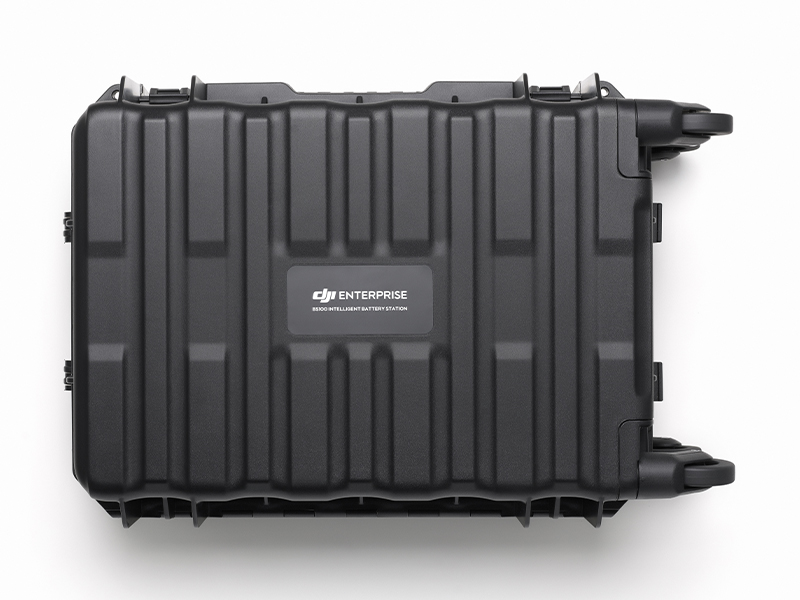

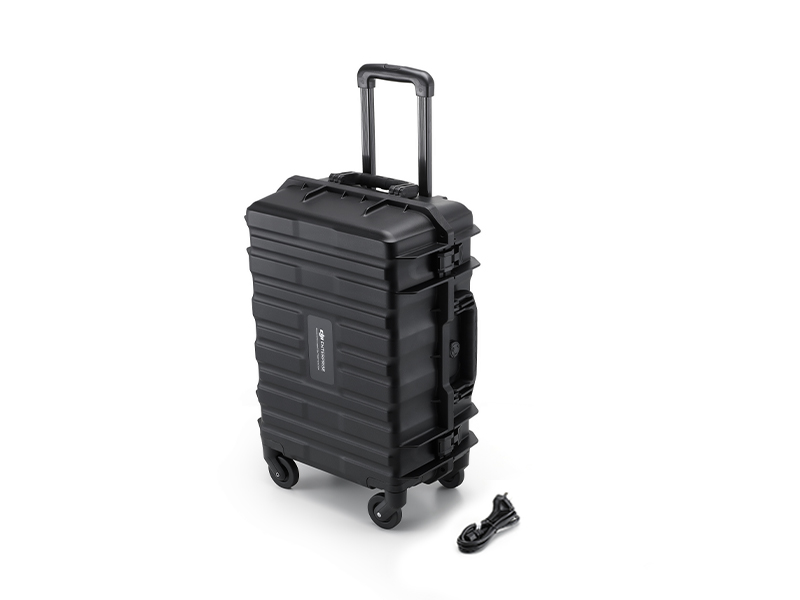

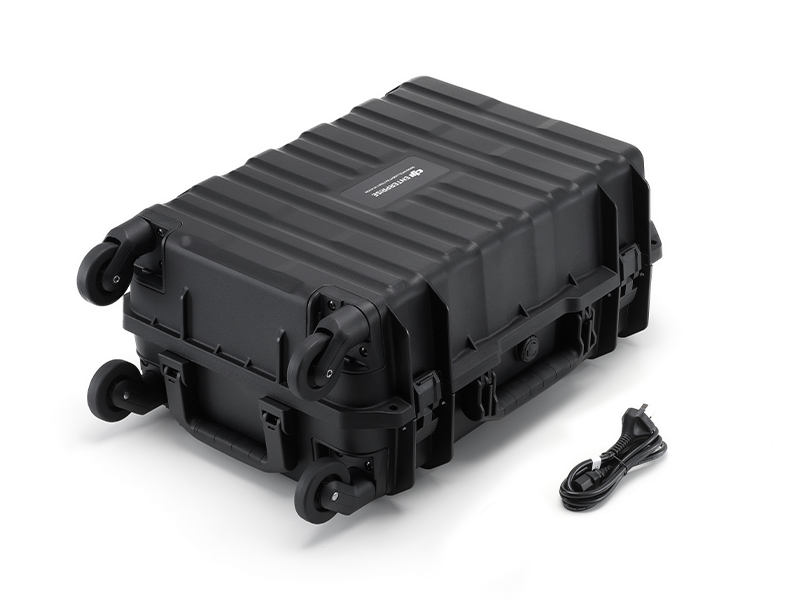

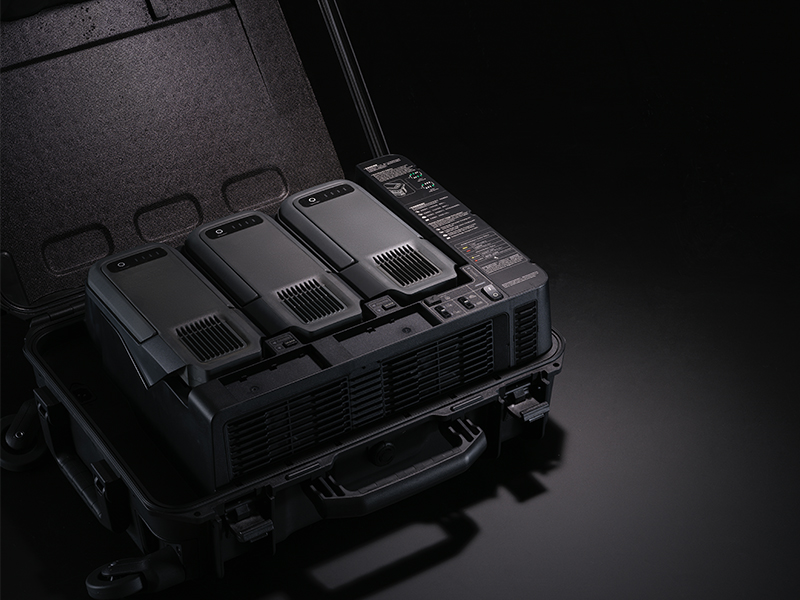

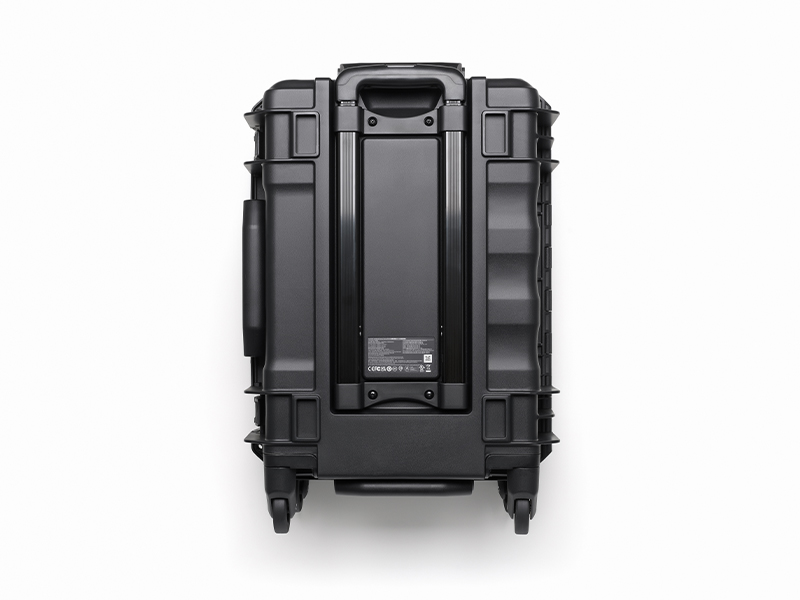

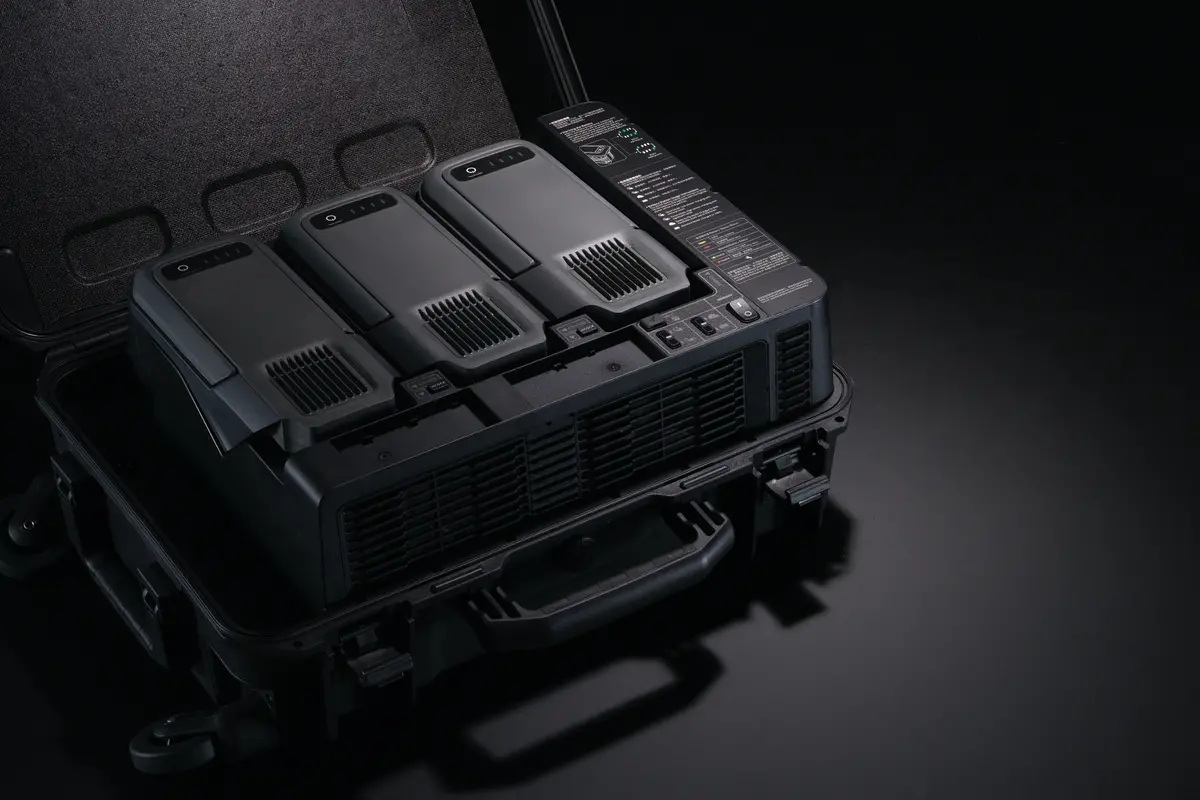

Charge all your batteries together with the DJI BS100 Intelligent Battery Station. Designed to simultaneously charge three TB100 Batteries and two WB37 Batteries, the hub can be used to efficiently charge batteries in parallel, for battery storage and more!

Ultra Fast Charging

BS100 Intelligent Battery Station delivers the efficient Charging, with a fast charging time of just 45 minutes per TB100 battery. So you can spend less time charging and more time flying!

Charging Time

45 Minutes
Rapid Mode

110 Minutes
Quiet Mode

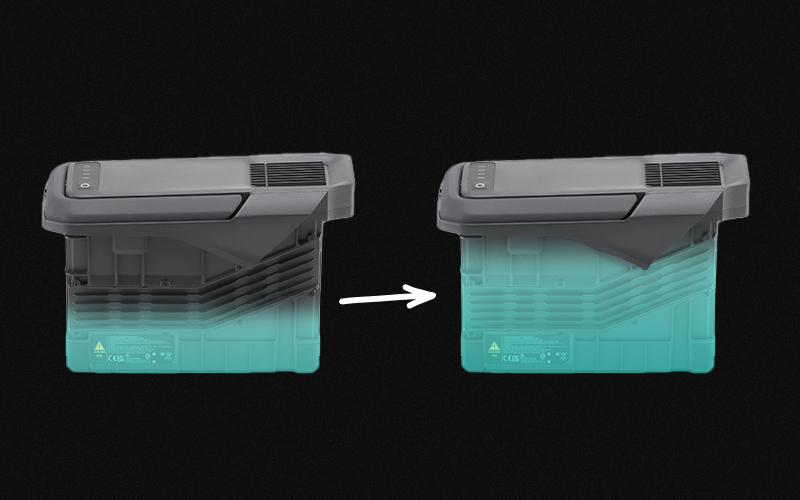

Power Accumulation

Transfer charge from low-powered batteries into a single TB100 and squeeze more mission critical flight time out of your batteries when out in the field.

Portable Power Bank

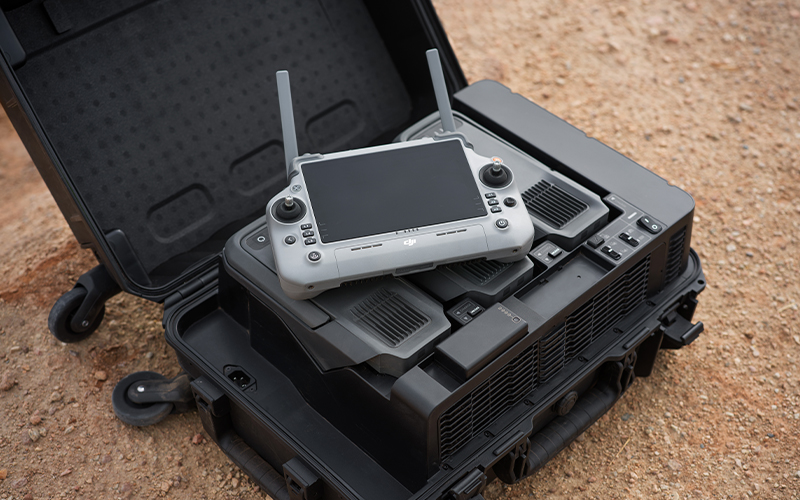

Need a little juice when you’re out in the field? The 65W USB-C port, allows you to easily charge remote controllers, laptops and more via USB-C.

Intelligent Energy

With intelligent charging algorithms, the DJI BS100 Intelligent Battery Station prioritises the battery with the lowest charge, switching to parallel charging when all batteries reach the same charge percentage.

⚡ Maximum Charging Power

21.7A for 100-110V

27A for 110-180V

40A for 180-240V

🔋 Supported Batteries

TB100 Intelligent Flight Battery

TB100C Tethered Battery

WB37 Intelligent Battery

Net Weight	11.8 kg
Dimensions	605×410×250 mm (L×W×H)
Supported Batteries	TB100 Intelligent Flight Battery, TB100C Tethered Battery WB37 Battery
Operating Temperature	-20° to 40° C (-4° to 104° F)
Input	100-240 V (AC), 50-60 Hz, 10 A
Output	USB-C： TB100 Battery Interface: 100-110 V: Approx. 1185 W 110-180 V: Approx.1474 W 180-240 V: Approx. 2184 W WB37 Battery Interface: 100-240 V: Approx. 52 W USB-C: 5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A
Number of Charging Channels	Three TB100 and two WB37 batteries
Charging Mode	Ready-to-Fly Mode 90%; Standard Mode 100% Supports Fast Charging Mode and Silent Mode
Charging Time	TB100/TB100C Battery From 0% to 100%: 220 V: 45 minutes (Fast Charging Mode); 110 minutes (Silent Mode) 110 V: 70 minutes (Fast Charging Mode); 110 minutes (Silent Mode) ^{Charging time is measured in a test environment with a temperature of 25° C.}
